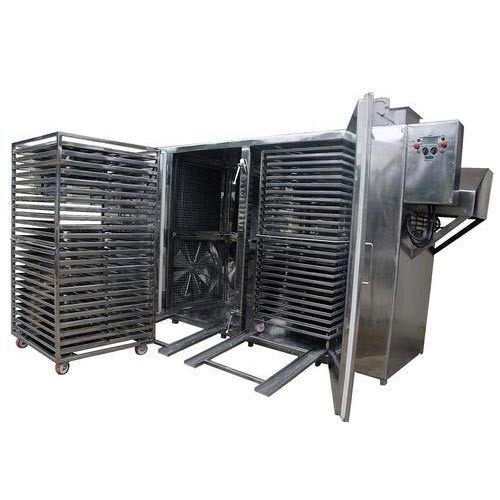

Tray Dryer
Pharmaceuticals :: Solid Dosages/Tablet/Capsule/Powder Section :: Drying System :: Tray Dryer

We are instrumental in offering a wide range of Tray Dryers, which is highly appreciated for its high durability and robust construction. These Tray Dryers can be availed in various specifications as per the requirement. Moreover, we offer Tray Dryers at most competitive prices.

Finishing

The design and manufacture of the dryer is of high standard of GMP and has an aesthetic look. It is buffed externally to 150 grit matt finish and internally buffed to 220 grit mirror finish.

Electrical Heating

The Air inside the Tray Dryer is heated by "U" tube S.S.304 air heaters each of 1 KW.The heaters are fitted on the sides of the dryer to facilitate uniform heating. Maximum temperature attained inside the dryer is 100' C and will be indicated and controlled by a Digital Temperature indicator cum controller over full range of heating load.

Total Heating Load For It Will Be

  • 12 Trays Dryer - 4 KW
  • 24 Trays Dryer - 6 KW
  • 48 Trays Dryer - 12 KW
  • 96 Trays Dryer - 24 KW

The heaters will be inserted inside tubular pipe to prevent it from becoing RED HOT. The terminals of the heaters will be brought outside the dryer to make it more safe for operations for solvent based products.

Air Circulation

Air inside the dryer is circulated by one heavy duty axial flow S.S.304 or alluminum blower fitted on a shaft of and driven by l H.P. through belt. The special design of the Blower ensures uniform air circulation so that there is uniform air current over the entire charge loaded in the Trolley inside the dryer. The working of the motor is indicated by lamps in the control panel.

Trays

Trays will be manufactured from 1.6 mm SS 304 sheets.Its dimensions are 32" x 16" x 1 l/4". The Trays have rounded corners with' mirror finish from inside and outside. SS 316 quality is available on demand.

Racks And Trolleys

Racks are provided for trays insdie the Dryer. They are of fixed type for 12 and 24 Tarys Models. For 48 and 96 Trays Models. Racks are provided with wheels to slide them in and out of the Dryer. An additional S.S, trolley for Racks for outside movement can be provided on request

Model Available

  • 12 trays, 24 trays, 48 trays, 96trays

Our Product Keywords

Jay Pharma Equipments : Tray Dryer, tray dryer manufacturers, tray dryer exporters, tray dryer manufacturers in mumbai, tray dryer manufacturers in maharashtra, tray dryer manufacturers in vasai, tray dryer manufacturers in india, list of manufacturers tray dryer in bombay, bombay tray dryer, pharma tray dryer, pharmaceutical tray dryer mumbai, pharma tray dryer bombay, tray dryer pharma companies, pharmaceutical tray dryer manufacturers, chemical tray dryer bombay, tray dryer for pharmaceutical, pharma tray dryer manufacturer in india, pharmaceutical tray dryer manufacturers in maharashtra, pharma tray dryer engineers, jay pharma exporters, wholesaler tray dryer mumbai, stainless steel tray dyer, ss tray dryer gmp model, pharma oven manufacturers, chemical oven manufacturers, Mumbai, Maharashtra, india.

Specifications

Model JPETD-24 JPETD-48 JPETD-96
No. Of Trays 24 48 96
Tray size 16 x 32 x 1.25 16 x 32 x 1.25 16 x 32 x 1.25
Heating load at
100oC 6 x1000 W 9 x 1000 W 15 x 1000 W
200oC 9 x1000 W 15 x 1000 W 21 x 1000 W
300oC 12 x1000 W 18 x 1000 W 27 x 1000 W
